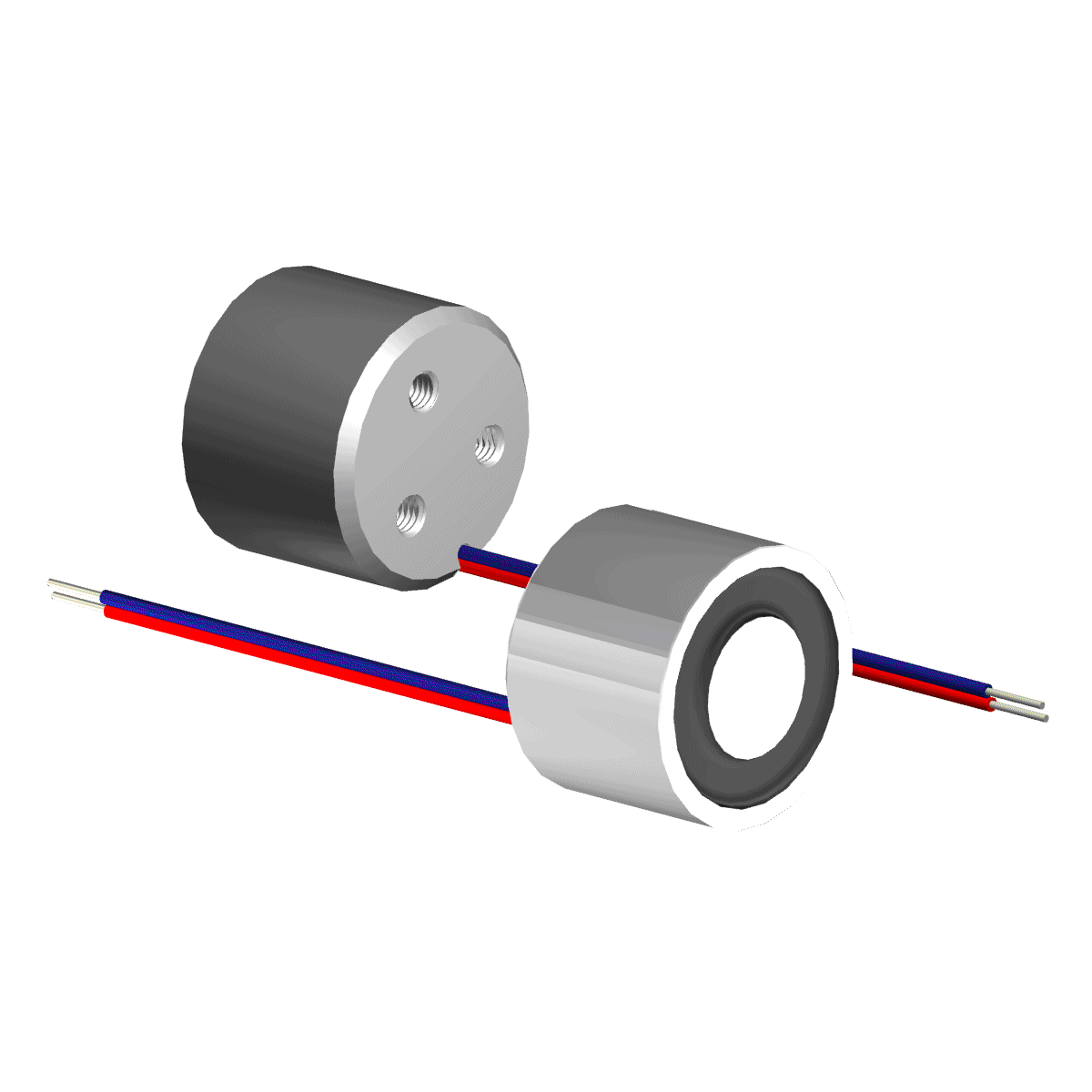

Electromagnets Electromagnets
ITS-MS-5537
Description
An electromagnet is a core of magnetic material (such as iron) surrounded by a coil of wire through which an electric current is passed to magnetize the core.
Weight: 550 g
Haltekraft: 700 N
Anzugsplattendicke: 7 mm
Coil Data
| Duty (%) | 100 | – | – | – |
| Power Drain (Watt) | 10 | – | – | – |
| Max. Duty (Seconds) | ∞ | – | – | – |

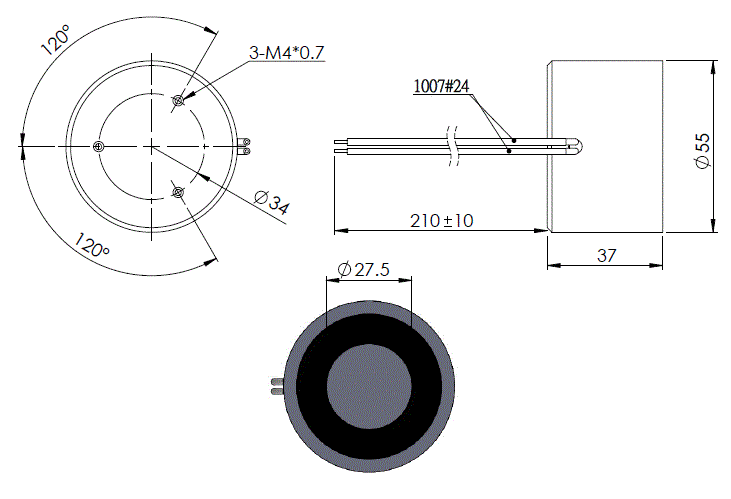

Solenoid Layout
Voltage:
6 VDC (standard)
12 VDC (standard)
24 VDC (standard)
other voltages on request
Special development
Sie wollen diesen Standardmagneten abändern (z. B. Abmessungen, Kräfte, usw …) dann senden Sie uns einfach dieses Formular: Checkliste (PDF, 390 kB)
Would you like some guidance or to place an immediate order?
Please don´t hesitate to ask us, just call or write us!
